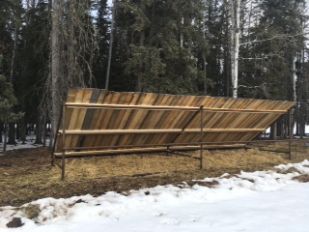

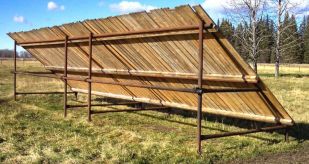

Calf Shelter/Windbreak Model: CS/W-30x12

Construction:

Pipe frame 30 ft long with 12-ft boards

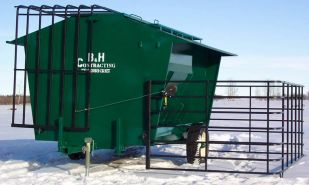

Creep Self Feeders Model: 250 FDR

Construction:

capacity: 250 bu
dimensions: 9'4''W X 10'L X 7'H
hitch: detachable, heavy wall square tubing
leveling stands: 2 at front
jack: side wind, 10'' travel

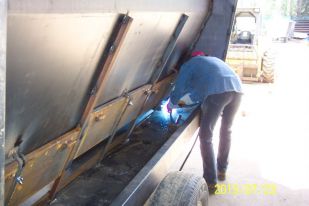

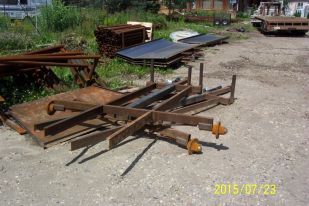

Description: Picture #2&3: Putting the pieces together
Picture #4: Primer

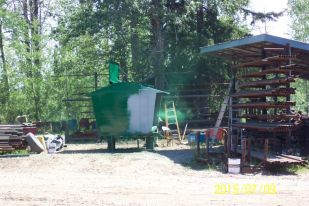

Picture #5: Finishing up the feeder

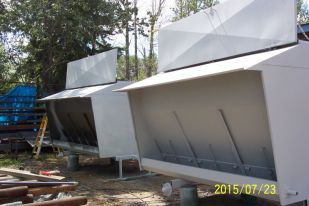

Picture #6: Creeps are ready for paint

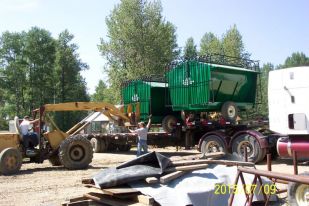

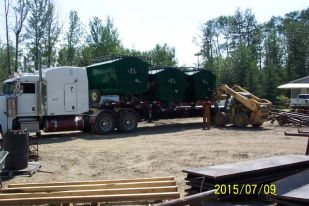

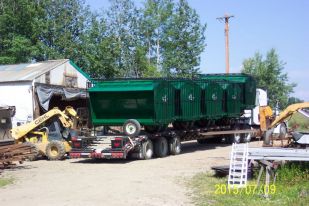

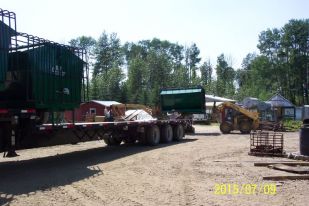

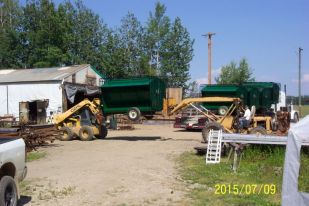

Pitcure #7-11: Loaded and headed to feed calves

Email Unit

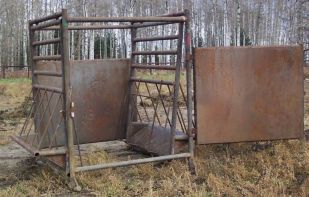

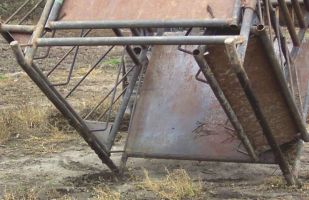

Swing Feeder Model: W-2 for Cows/Bulls and N-2 for Calves

Construction:

- skids and main frame: 2 7/8 Oilfield Tubing
- secondary pipes: 2 3/8 & 2 1/16 Oilfield Tubing
- bale guards on 15" centers
- each side swings in to access center feed
- with feed bars on 14" centers
- steel plate on feed fronts
- one end is a gate through which to process feeds

Description: Suitable for feeding up to 16-20 animals
With 2 large round bales

Dimensions: - 6'9"W (inside) X 7'H X 6'L (inside)

Weight: about 1100 lbs

Email Unit

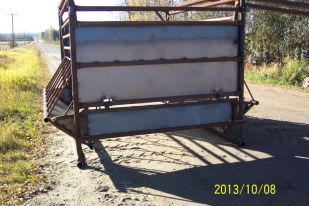

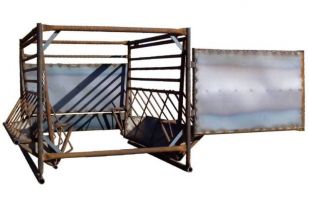

Swing Feeder Model: W-4 for Cows/Bulls and N-4 for Calves

Construction:

- skids and main frame: 2 7/8 Oilfield Tubing
- secondary pipes: 2 3/8 & 2 1/16 Oilfield Tubing
- bale guards on 15" centers
- each side swings in to access center feed
- with feed bars on 14" centers
- steel plate on feed fronts
- one end is a gate through which to process feeds

Dimensions: - - 6'9"W (inside) X 7'H X 10'6"L (inside)

Weight: - About 1500 Lbs

Email Unit

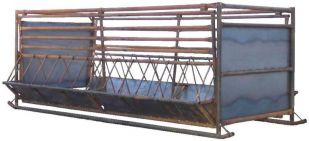

Swing Feeder Model: W-6 for Cows/Bulls and N-6 for Calves

Construction:

for use with 6 large round bales (3 on the bottom & 3 on the top)
processed feeds can be bucketed over the top
skids & main frame: 2 7/8 Oilfield Tubing
open bottom
bale guards on 15" to 32" centers
feed bars on 14" centers
each long side swings towards feed for feeding
steel plate on feed fronts
one end is a hinged gate through which to process feeds
suitable for feeding 60-70 adult animals
dimensions: 6'9"W (inside) x 7'H x 19'4"L (inside)

Description: Calf Model Same as Cow/Bull Model except:
- removable neck bar
- swing front apron is lower and narrower
- apron angle is 6 inches narrower
- overall width is 6" narrower

Dimensions: 6'9"W (inside) x 7'H x 19'4"L (inside)

Weight: about 2300 lbs

Email Unit

Swing Feeder Pictures Model: SW-W

Construction:

Our customers have proven that our SWING FEEDER does not waste feed
Some representatives for major livestock handling equipment manufacturers have traveled the country side and have seen every design of bale feeder either in use or in the fence-bottom. This includes our SWING FEEDER which they note does not waste feed.

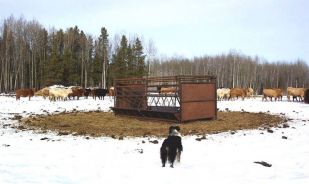

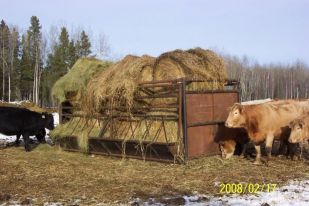

Description: Picture #1 - Swing feeder set up

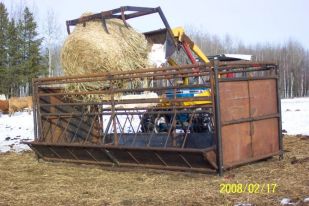

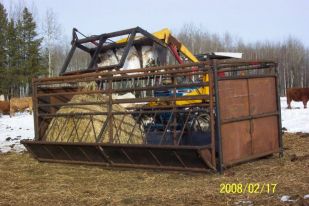

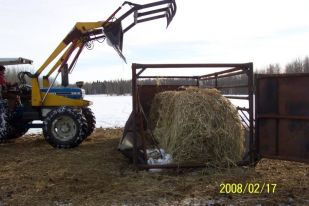

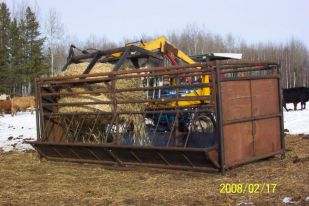

Pictures #2-6 - loading silage bale

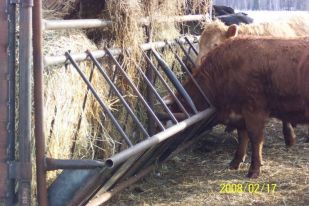

Picture # 7 - room for horns

Picture # 8 - holds 6 large round bales

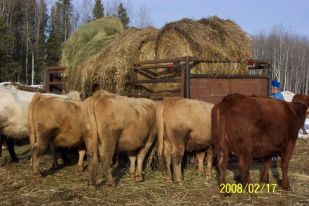

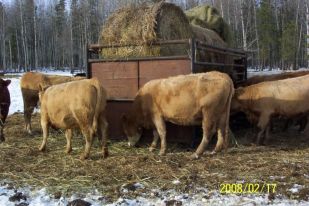

Picture #9-11 - easily feeds 24-60 head

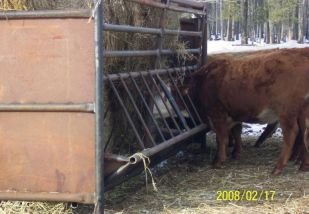

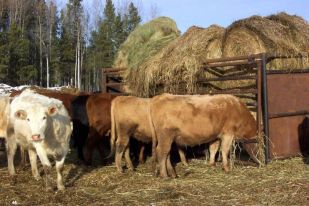

Picture # 12 - hay is always within reach

Email Unit

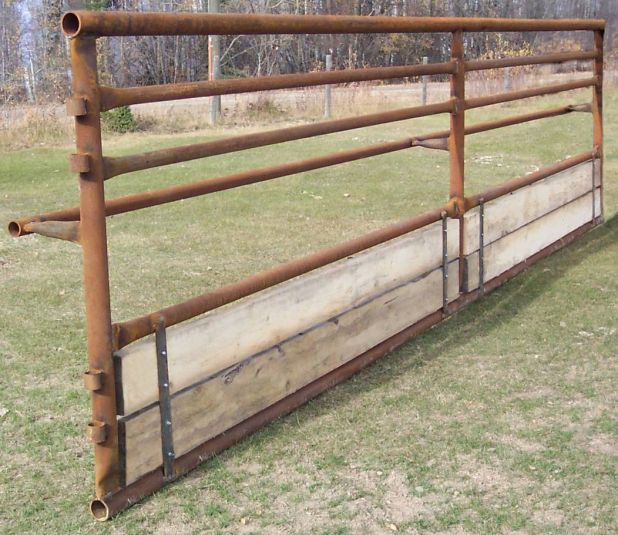

Fenceline Feeders Model: FLF-24

Construction:

pin and collar
vertical bars: 2 7/8 Oilfeild Tubing
top & bottom frame bars: 2 3/8 Tubing
horixontal bars: 2 1/6 Oilfeild Tubing (neck bar 12" from feed front)
lower 24" with full 2" lumber bolted to flat bars

Dimensions: Model FLF-24 24'L x 5'6"H

Email Unit

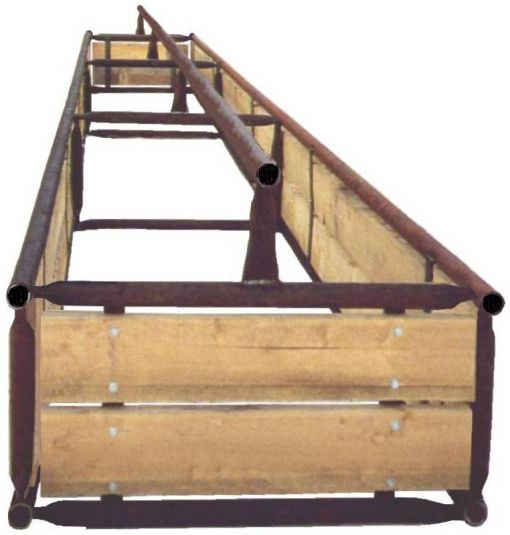

Silage Bunk Model: S-30

Construction:

frame & braces: 2 7/8 Oilfield Tubing
open bottom
full 2" thick lumber bolted to flat bars
cross braces every 10 feet: 2 3/8 Oilfield Tubing
center bar 12" above sides

Description: Available with or without wood

Dimensions: 40"W x 30'L x 24"H sides

Email Unit

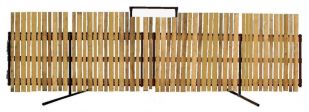

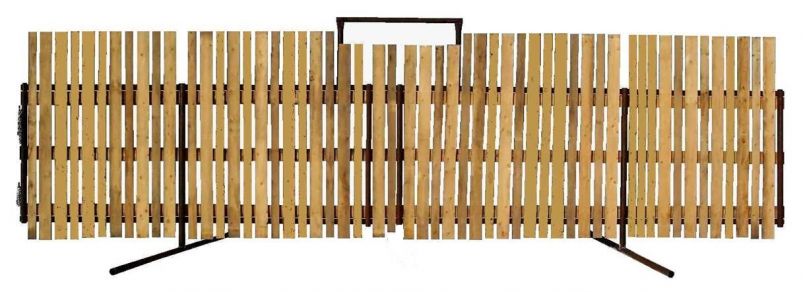

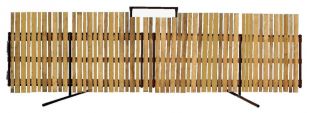

Windbreak Model: WB-30

Construction:

frame plus 3 uprights: 2 7/8" Oilfield Tubing
full 1" thick lumber: alternating 1x4's & 1x6's, deck screwed onto three 2x6 cross boards
lift bar: 2 7/8" Oilfield Tubing with 5'L x 12"W space to lift windbreak with forks or grapple
2 detachable swivel feet: 2 7/8" Oilfield Tubing, 8'L with 6" ground clearance
NOTE: For extra stability in high wind conditions, order 2 outer feet 12'L & add $10/windbreak
set screws to turn legs for transporting flat
free-standing with 2 chains 1/4 x 42"L with catches

Dimensions: 8'6"H x 30'L to 32'L

Weight: without wood, about 700 lb - with wood, about 1430 lbs

Email Unit

Windbreak Pictures Model: WB-30

Construction:

Description: Picture #1 - Rotatable legs

Picture #2 - set screws to turn legs to transport flat

Picture #3 - supports itself

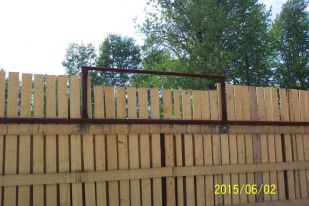

Picture #4 & 5 - backview

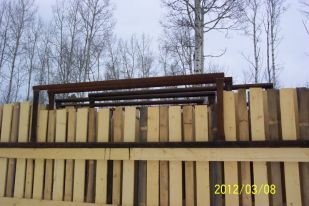

Picture #6 - top boards shortened for easier transportation

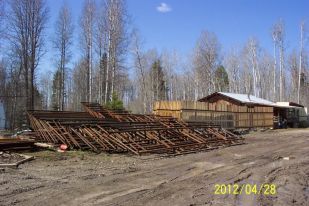

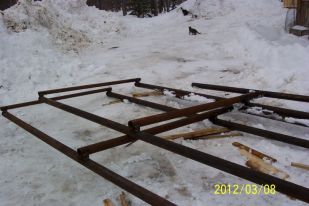

Picture #7 - pile of many Windbreak frames before the wood is put on

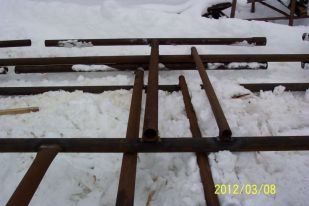

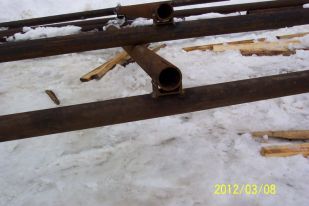

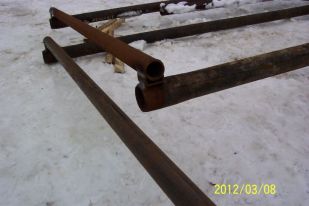

Pictures #8-11 - parts of the framework (ei: legs, corners, top)

Email Unit

Corral Panel Model: FS-24

Construction:

frame: 2-7/8" Oilfield Pipe
6 horizontal 7/8" sucker rod bars, 6 3/4" spaces
free-standing with 2 chains 1/4" x 30"L with catches
legs: 4'4"L x 12"H with set screws to turn legs to transport flat

Description: Also available, by request, with Swing Gate in Frame incorporated into Panel or hinged onto Panel end

Dimensions: 6'H x 24' L (3 vertical pipe bars)

Weight: about 720 lbs

Email Unit

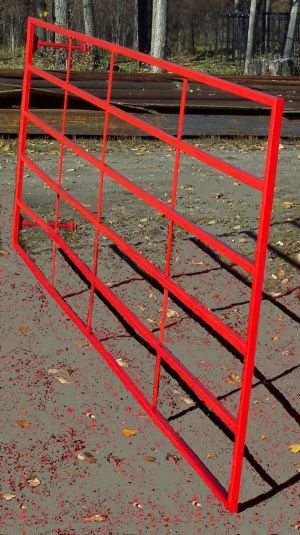

Pasture Gates Model: LPG-1-04 to 12

Construction (not painted):

frame: 1" Sq Tubing .100 Wall
6 horizontal bars, 8" spaces
hinge bolts: qty 2, 7/8" dia threaded left or right handed bolts, 12" long on collars with nuts & washers
with 1/4" x 24"L chain & catch

Description: Model LPG-1-04 - 4'L (walk-thru)
Model LPG-1-08 - 8'L (1 vertical bar)
Model LPG-1-10 - 10'L (2 vertical bars)
Model LPG-1-12 - 12'L (3 vertical bars)

Dimensions: 4'H x 4'L to 12'L depending on Model

Email Unit
